SentryPlus Alert Technology

SentryPlus Alert® technology offers versatile solutions for protection, detection, and notification. Select backflow preventer assemblies feature automatic flood protection by detecting continuous relief valve discharge. This condition can worsen with a blocked or undersized drain and lead to significant damage. Other select assemblies integrated with the system provide monitoring for pressure fluctuations and early warnings for freezing conditions.

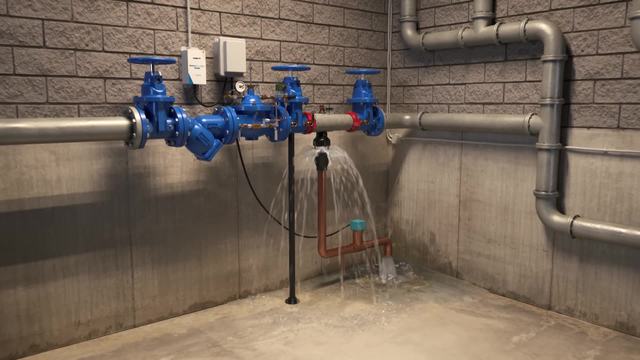

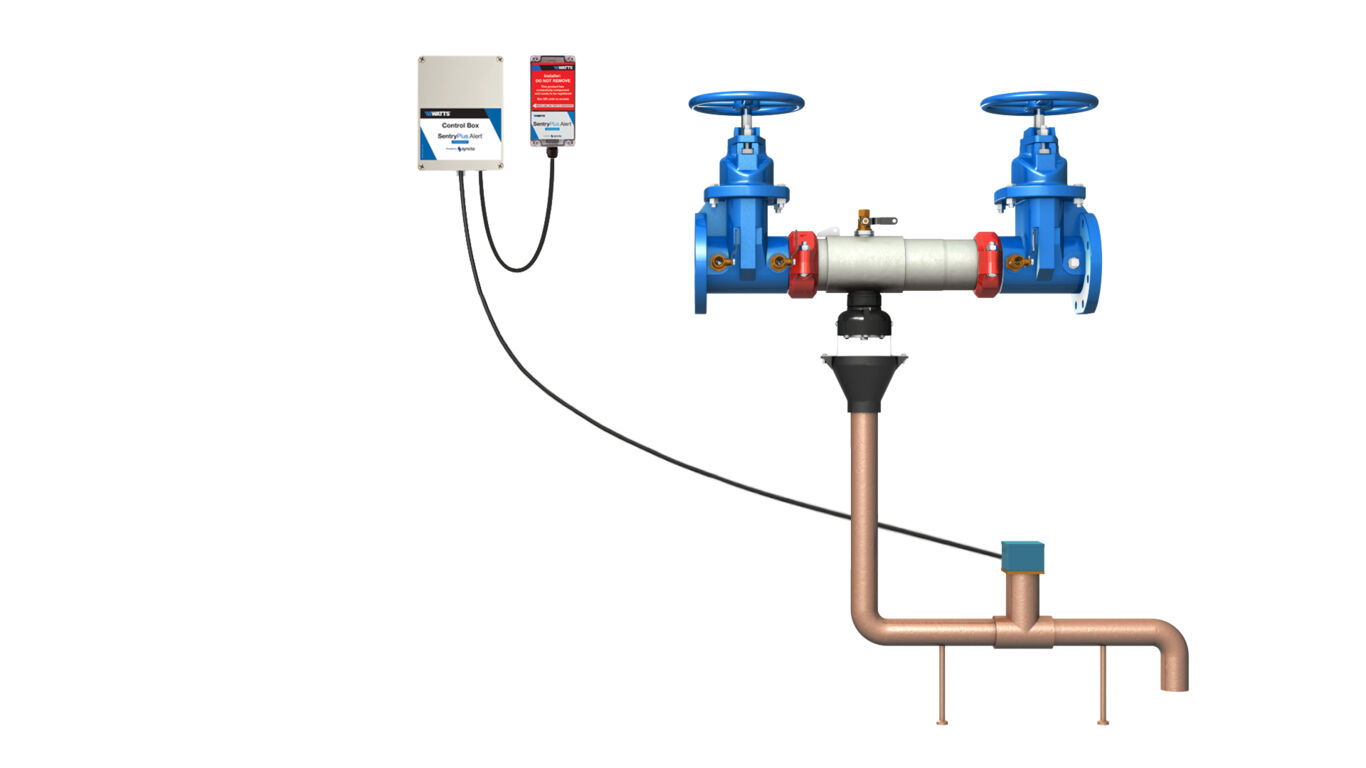

Series LFF113FP Flood Protection Shutdown Control Valves safeguard property by continuously monitoring RPZ backflow relief valve discharge. When abnormal discharge is detected, the system automatically shuts off the water supply, helping prevent potential flood-related damage.

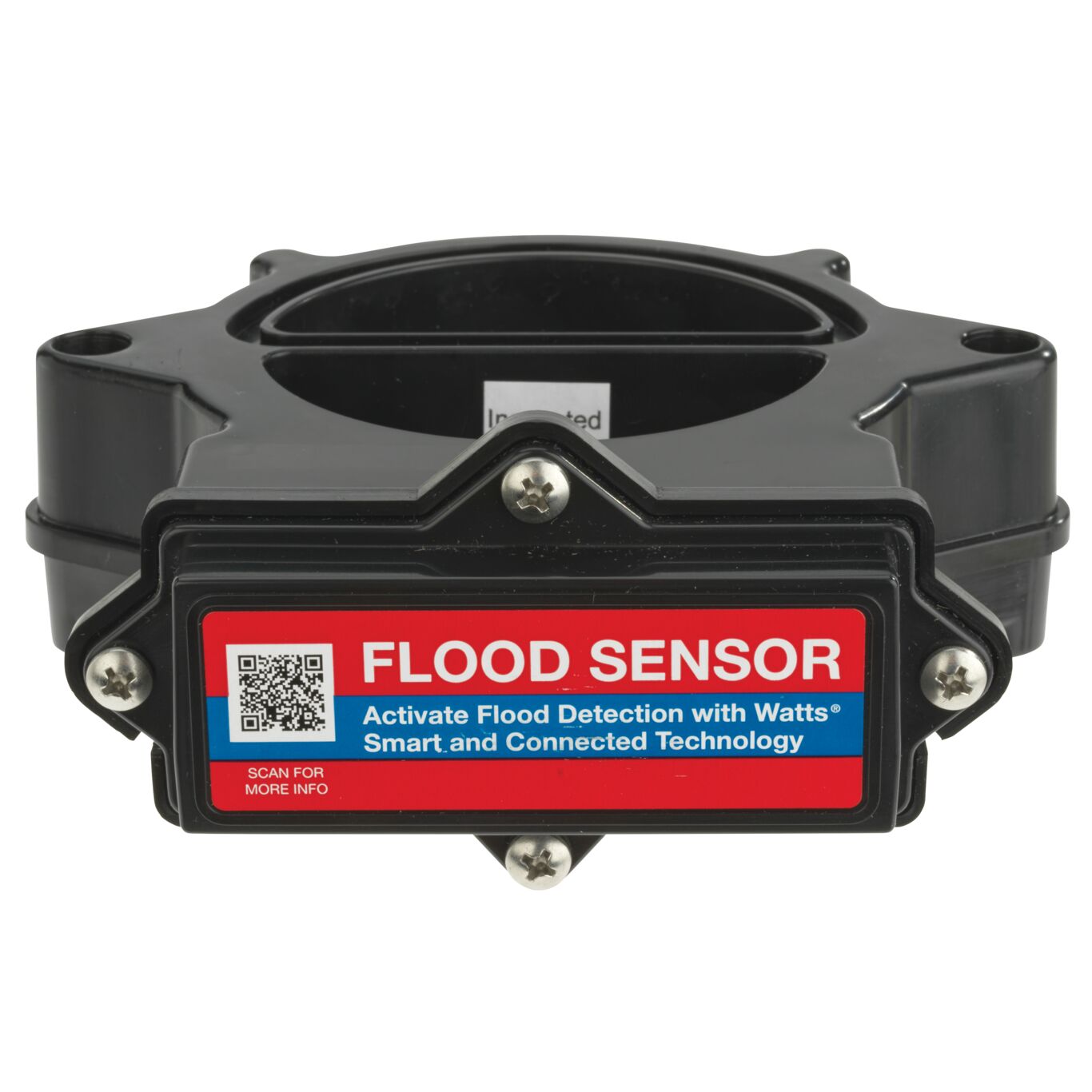

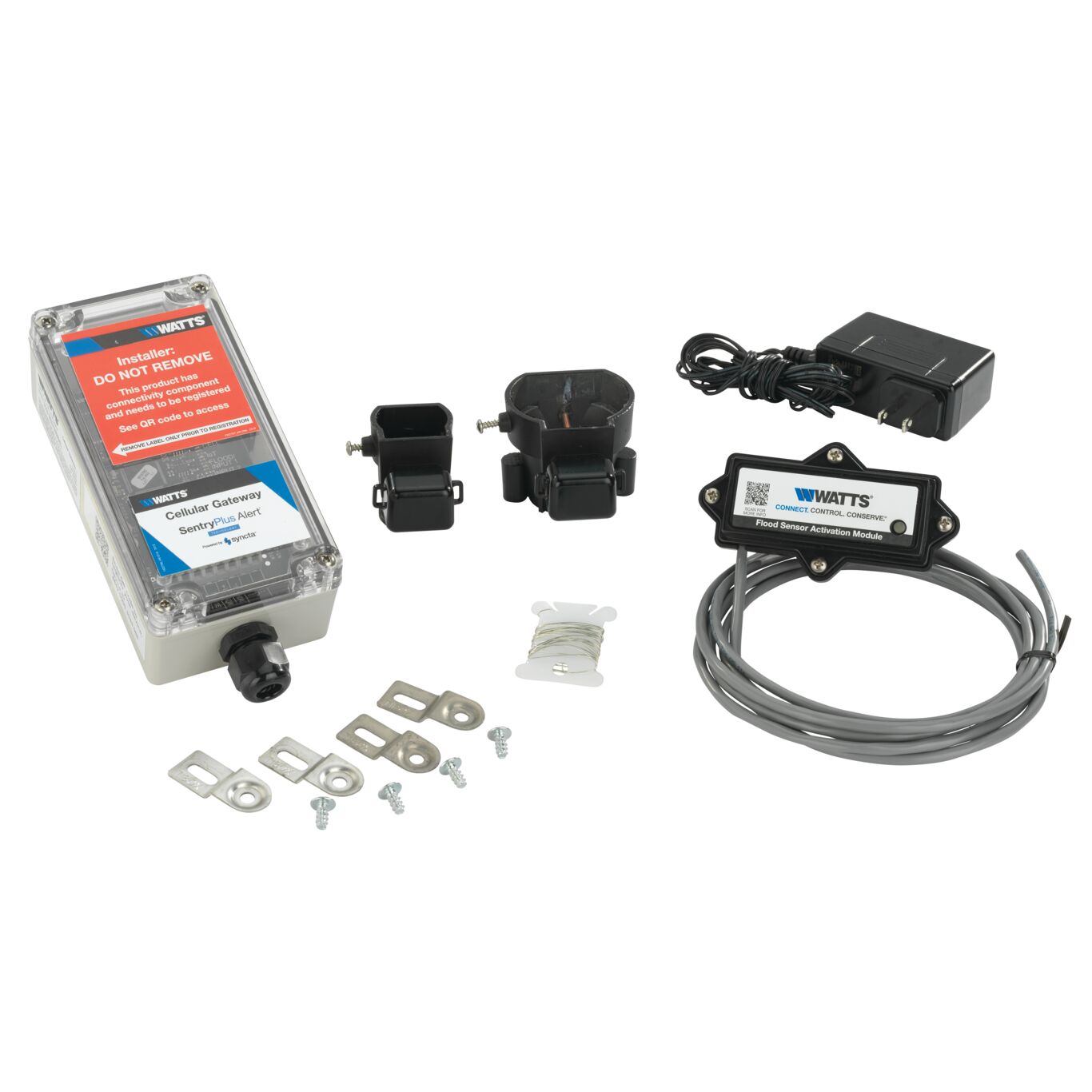

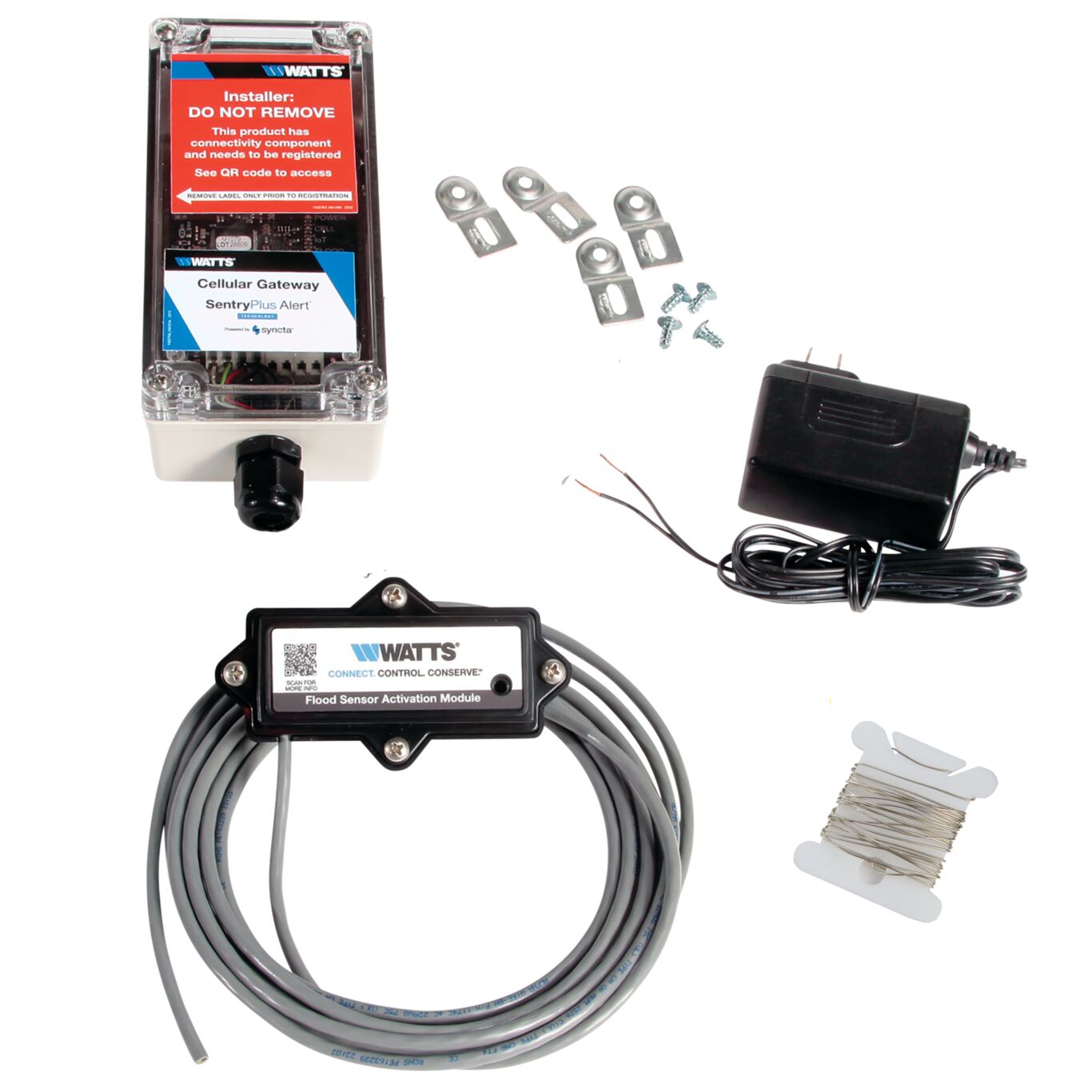

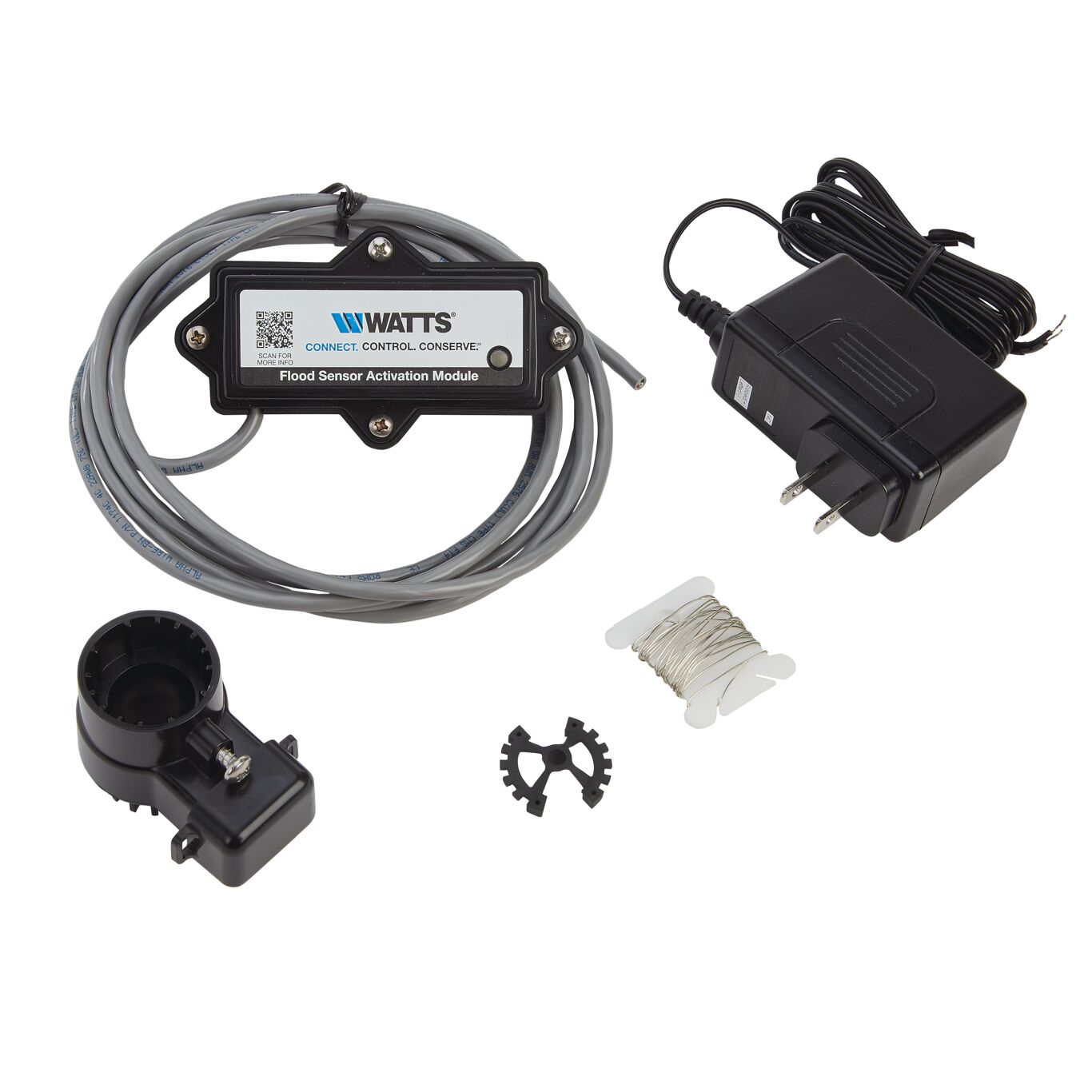

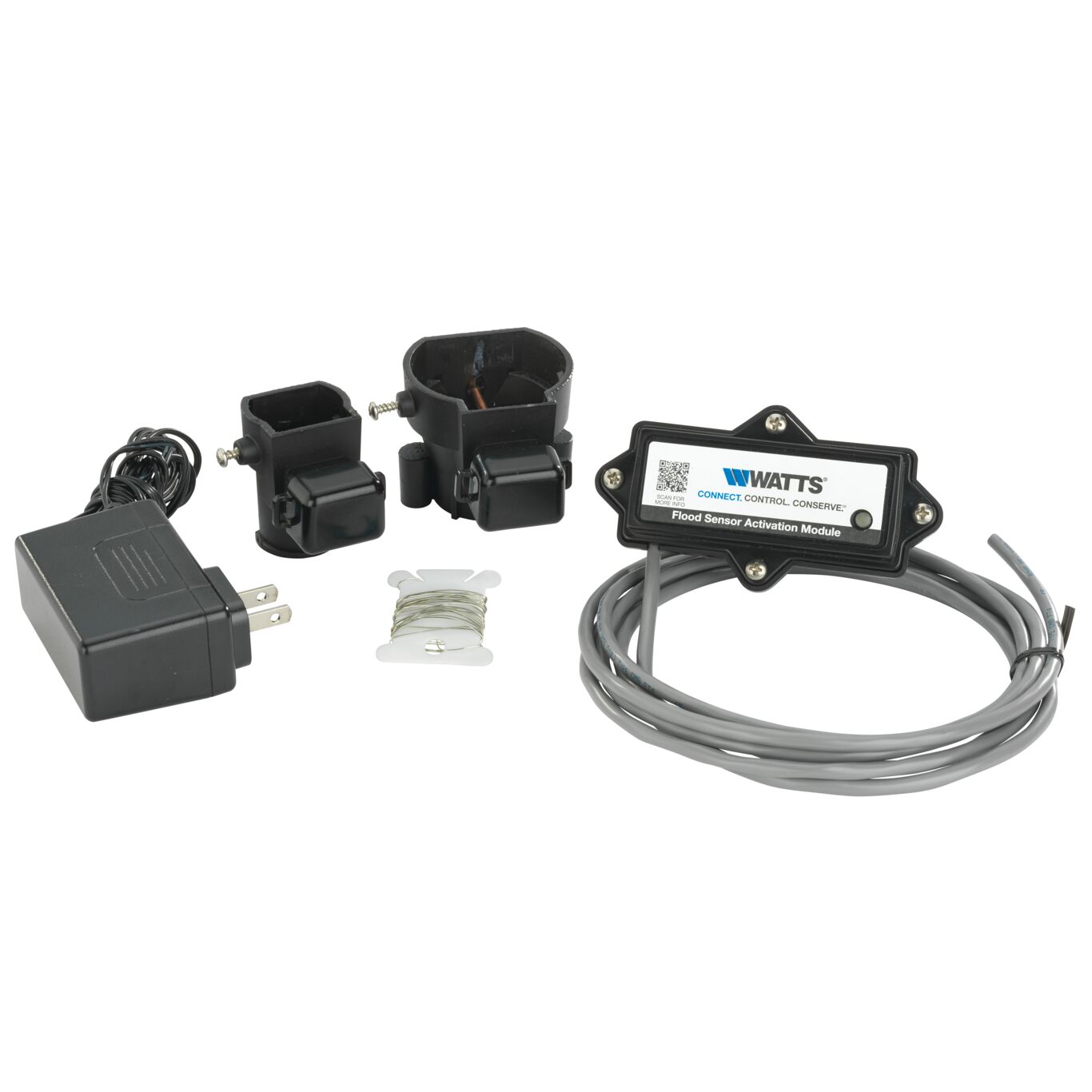

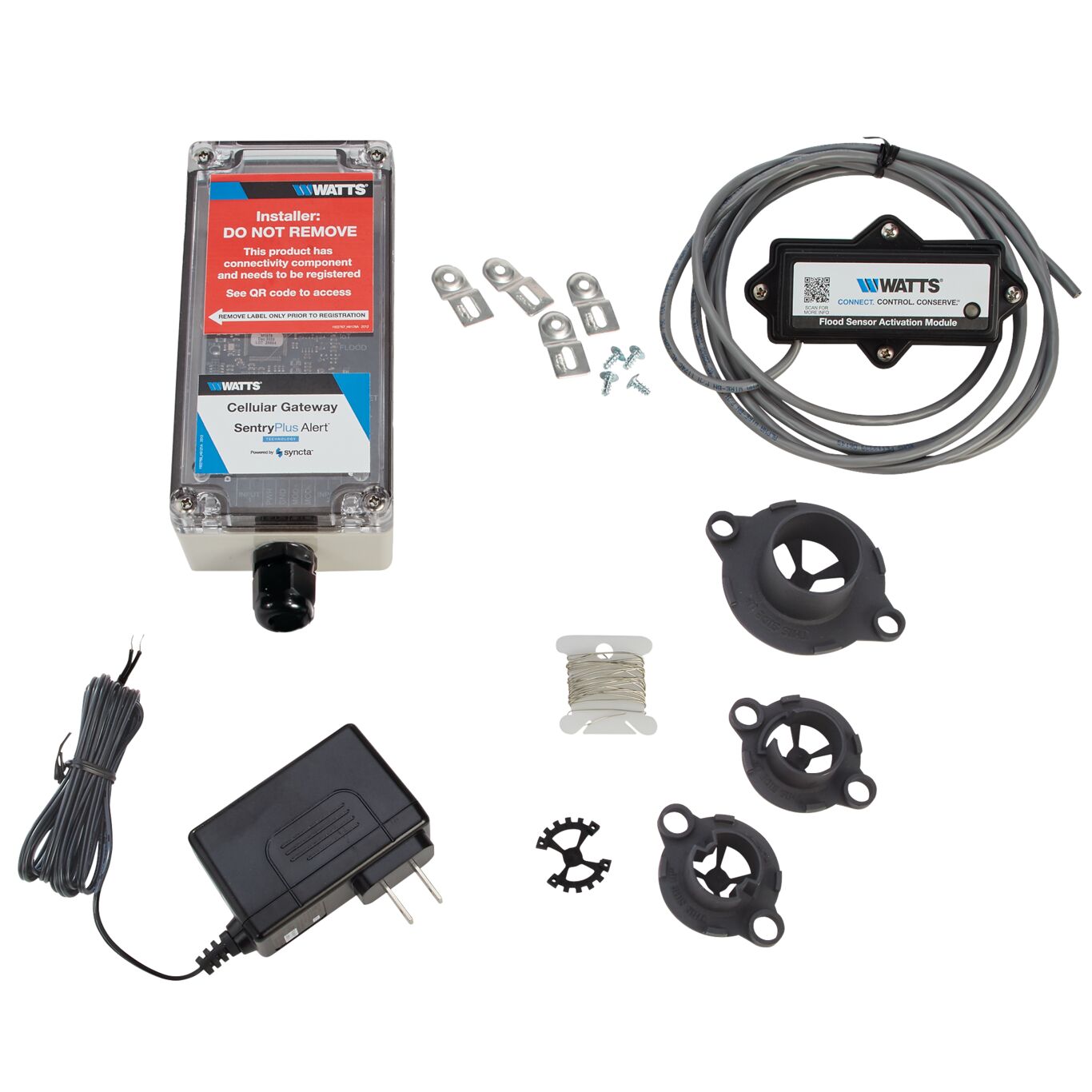

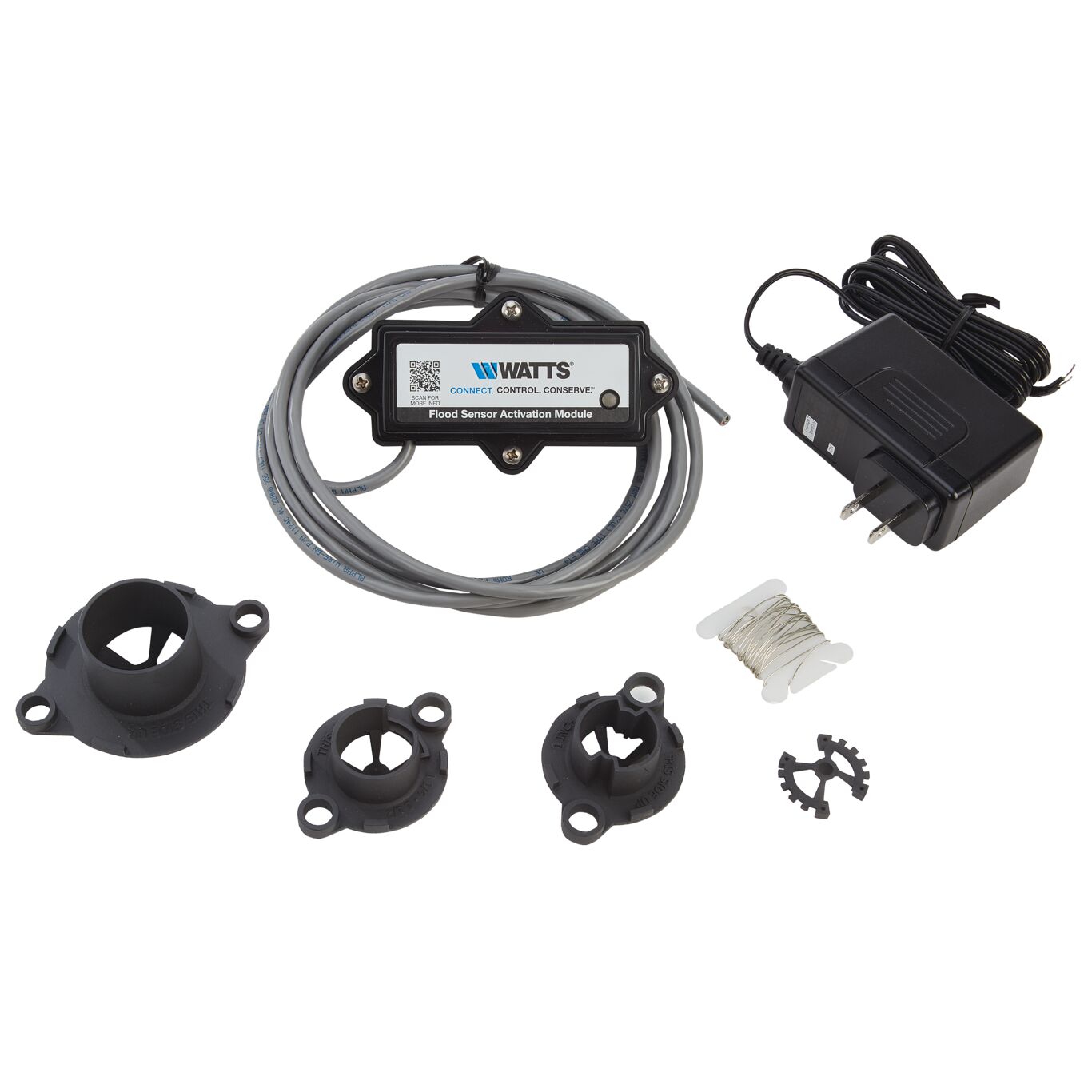

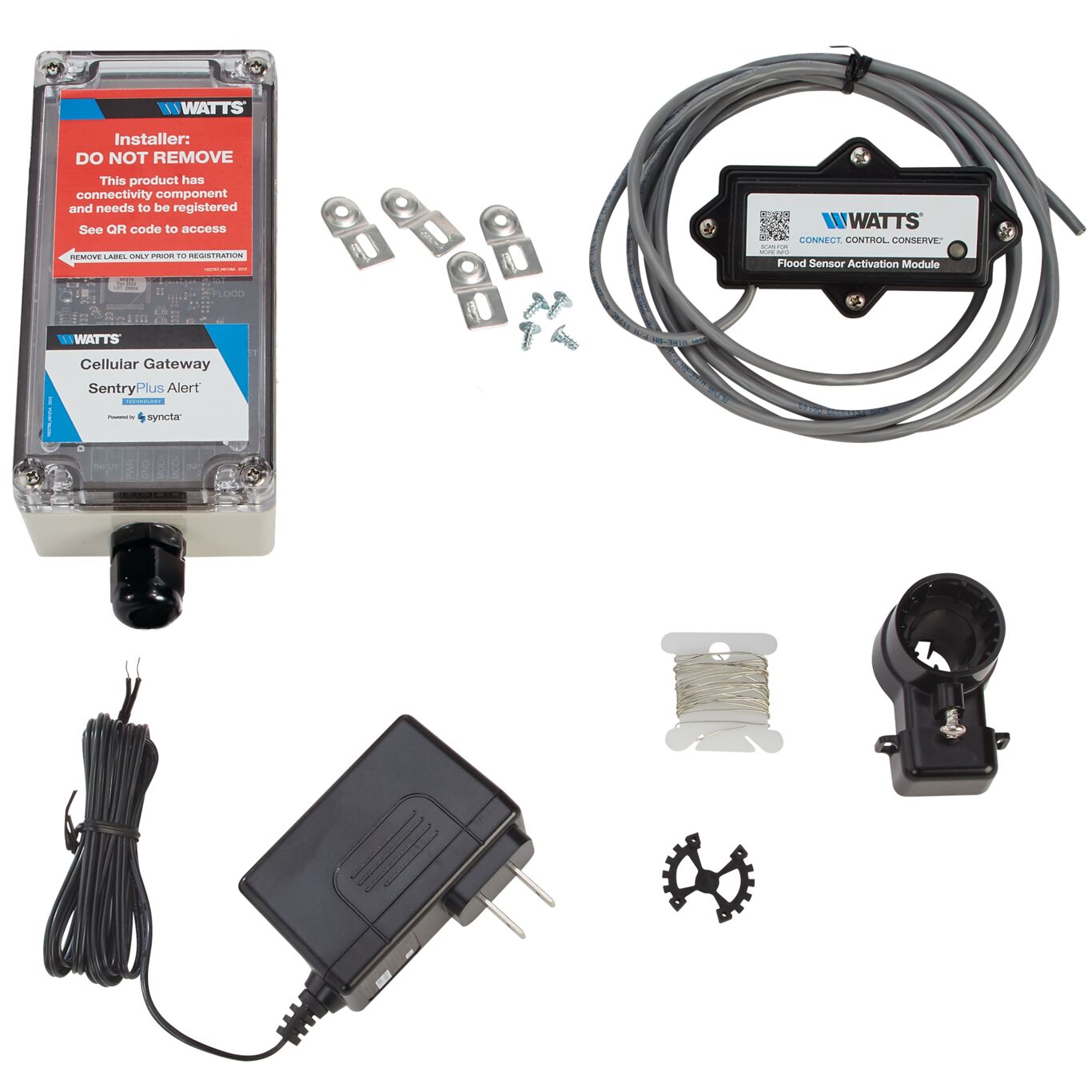

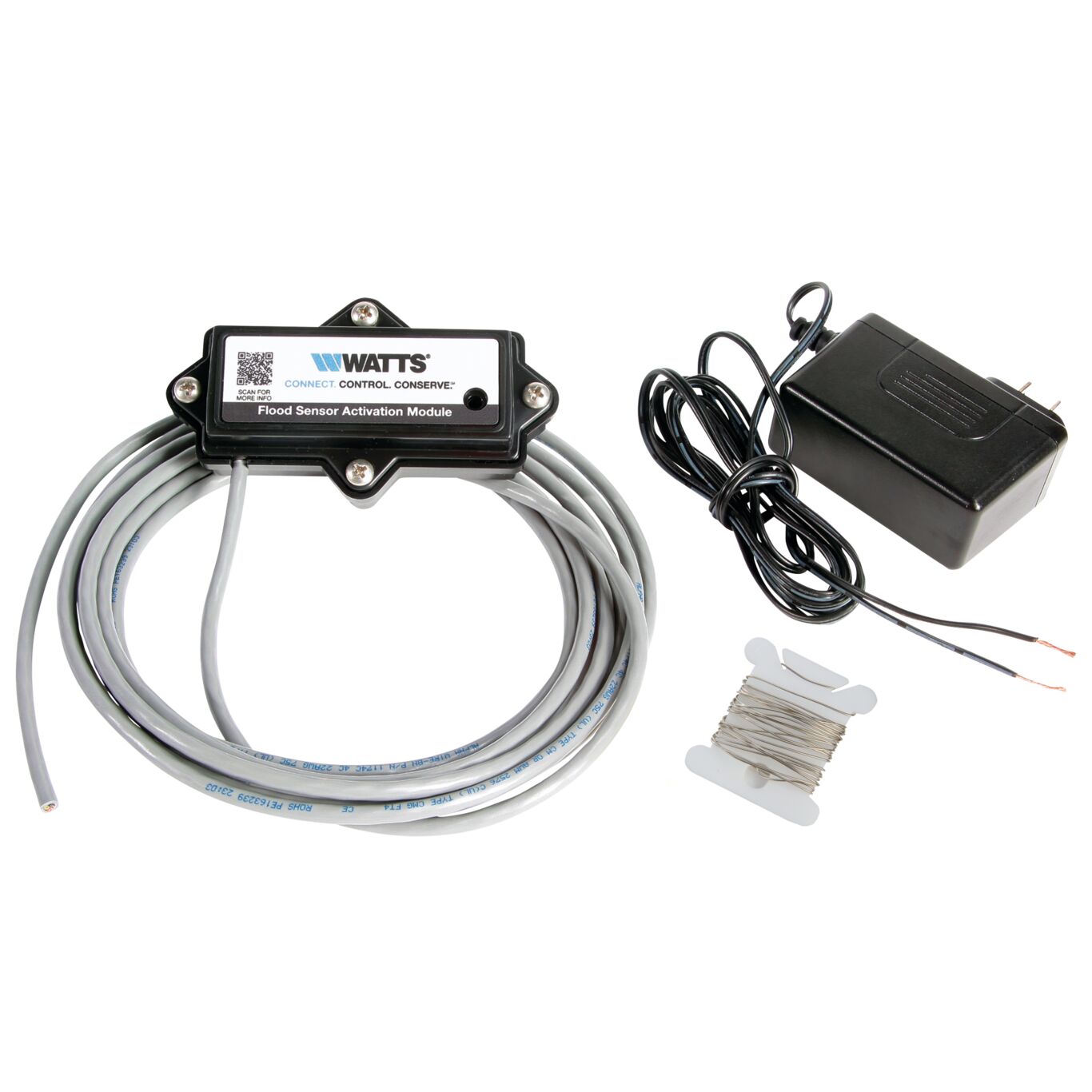

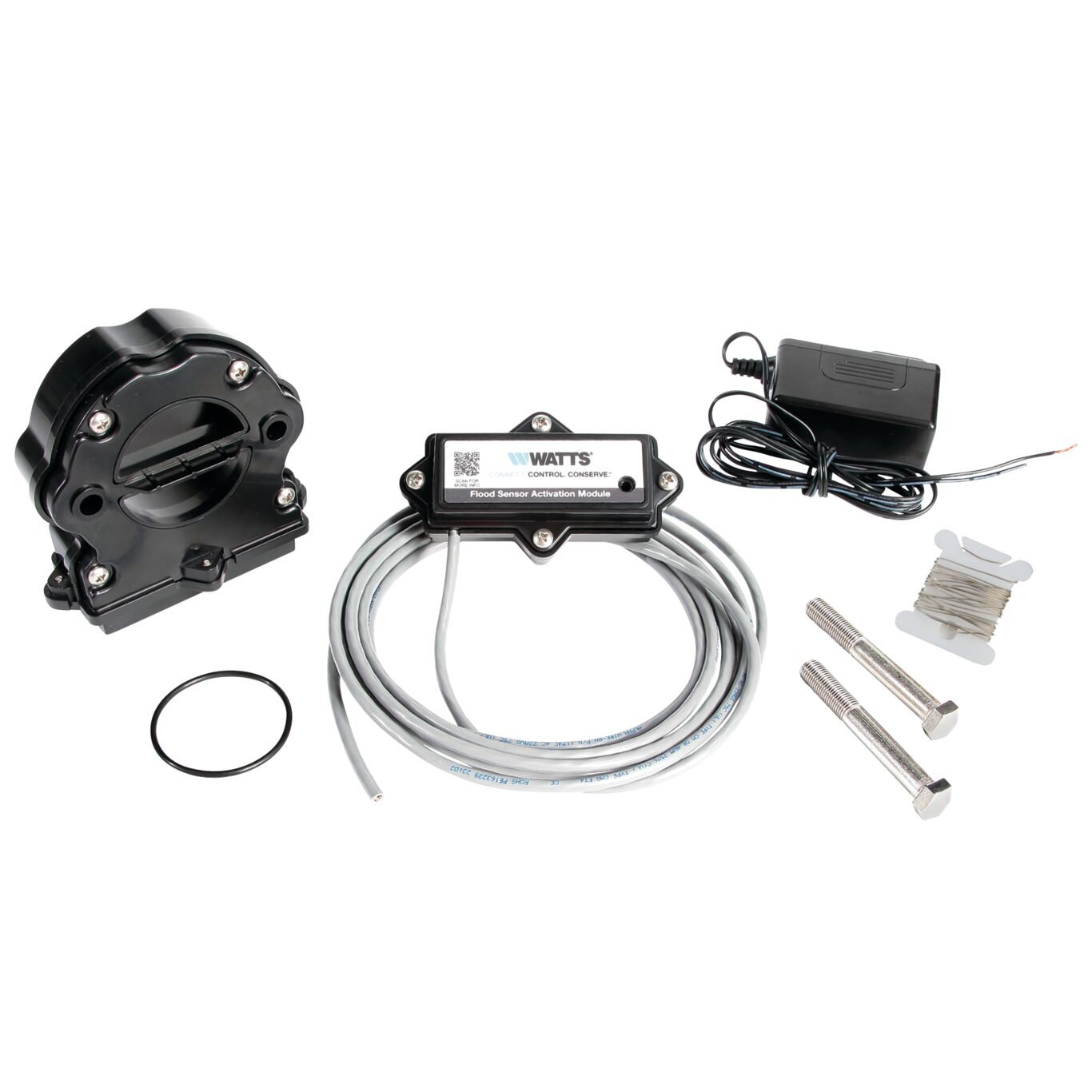

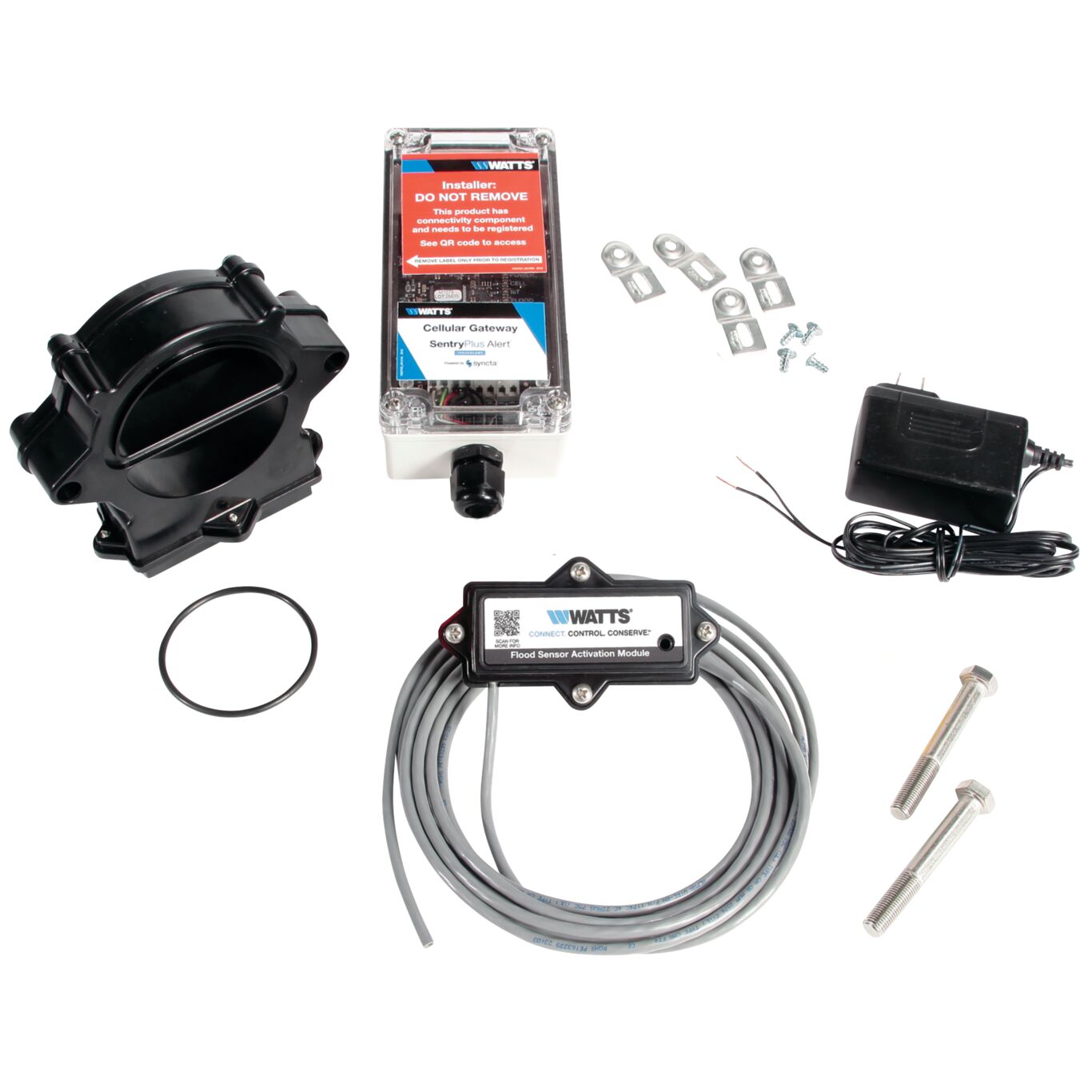

Flood Detection — Enhancing reduced pressure zone and detector assemblies with the SentryPlus Alert system and integrated flood sensors introduces a notification capability activated through the optional Sensor Connection Kit. This system supports integration with building management systems (BMS) as well as with cellular network communication enabling automated multichannel alerts (email, SMS, or voice call) to facility personnel who can respond quickly to stem abnormal relief valve discharges. Standalone flood sensor replacement kits are available.

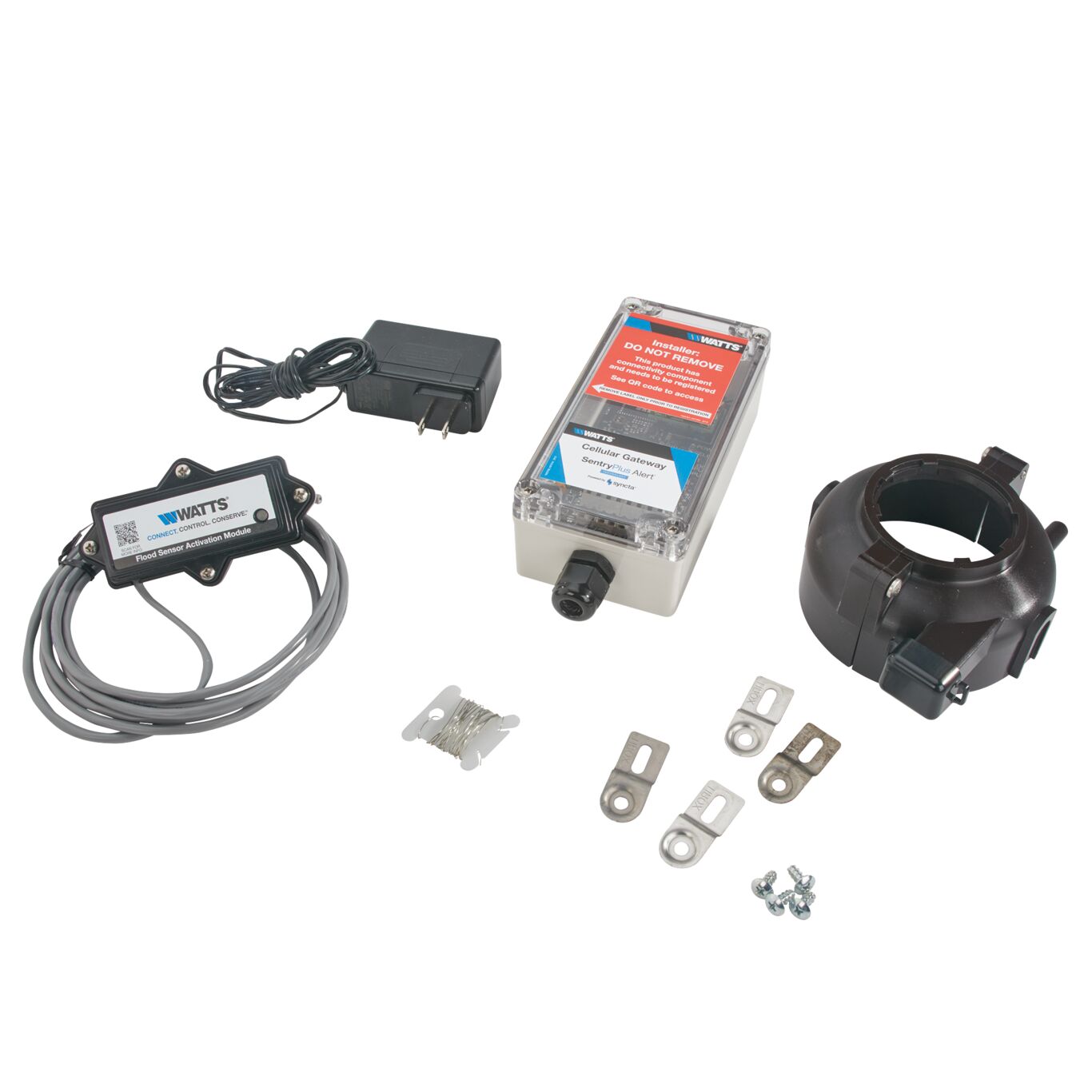

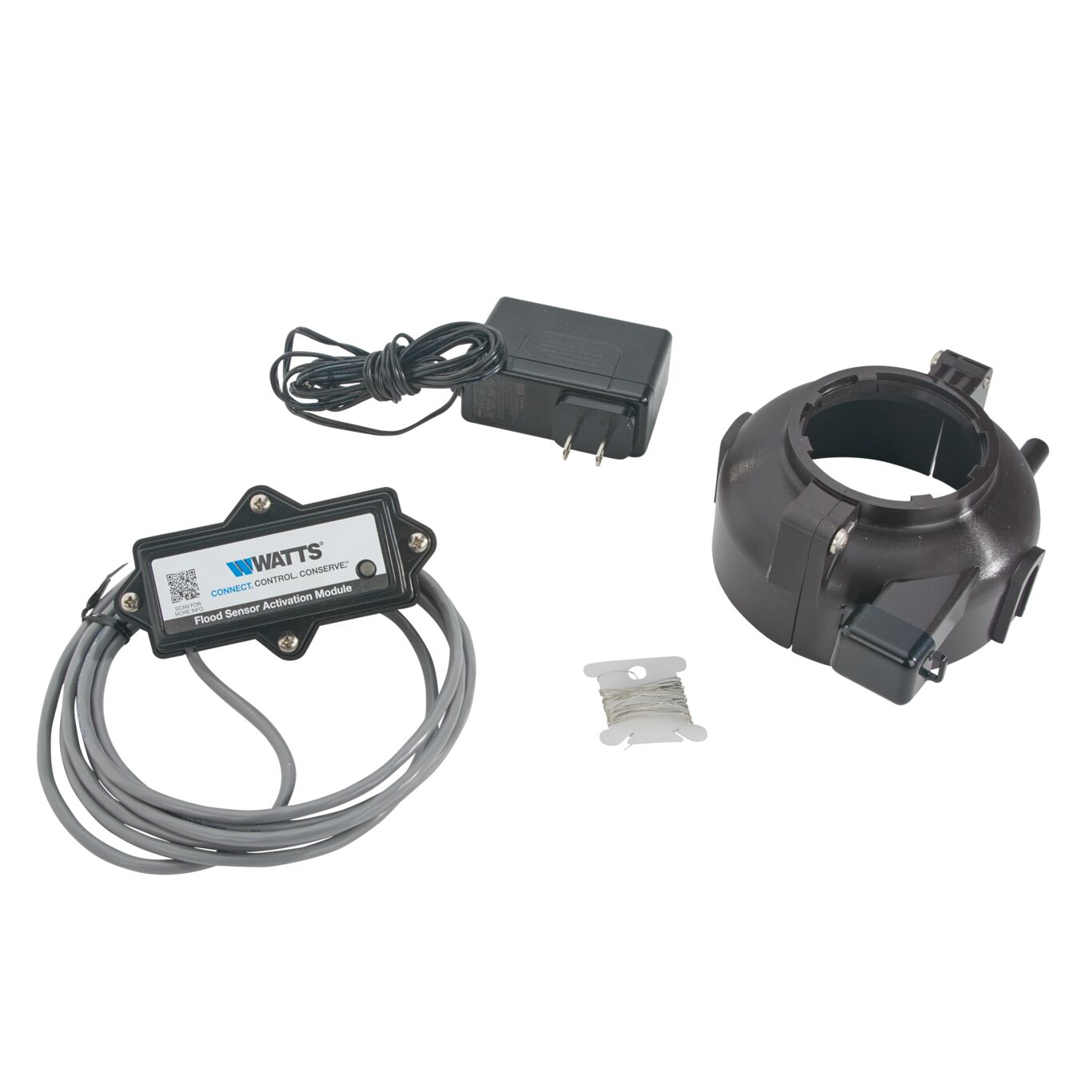

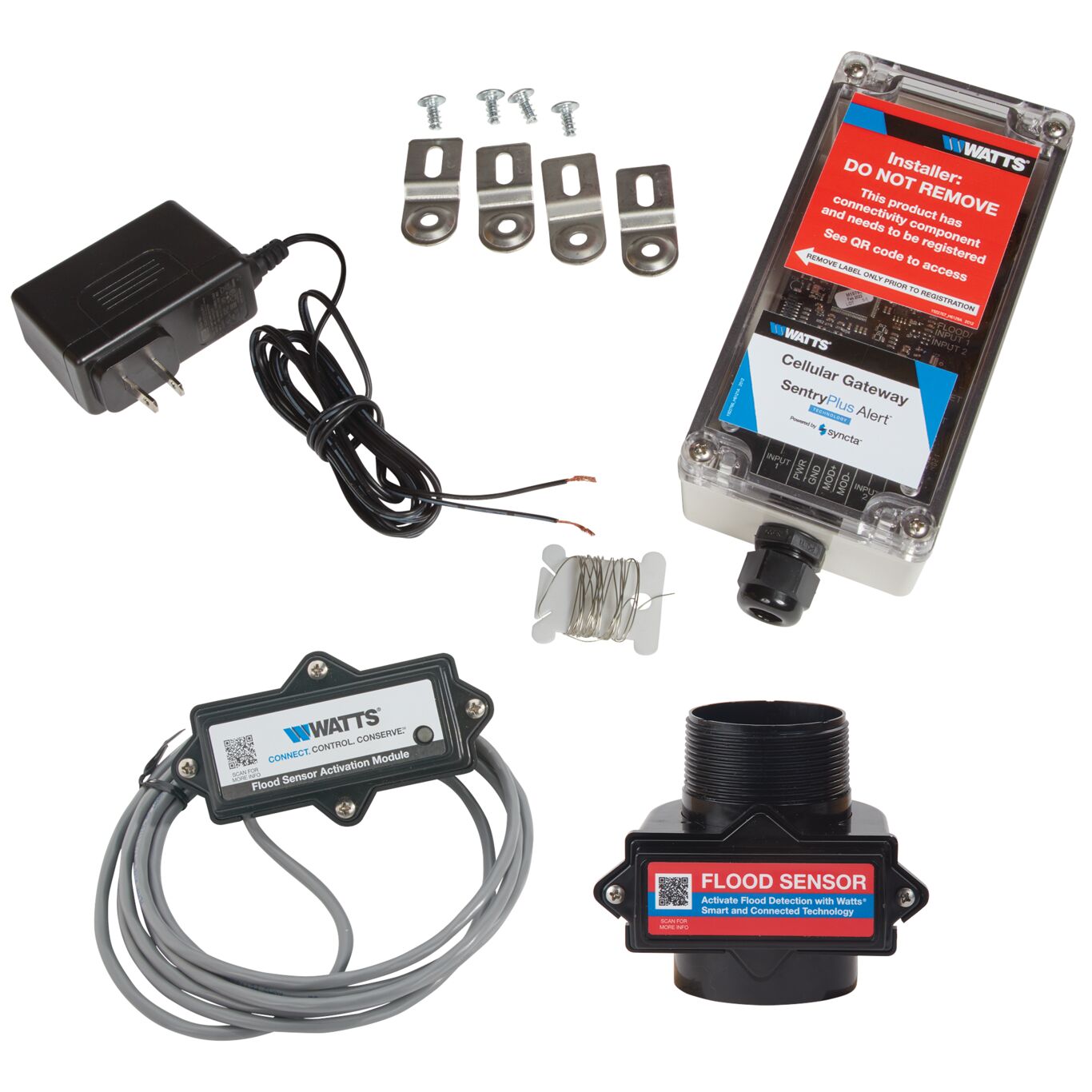

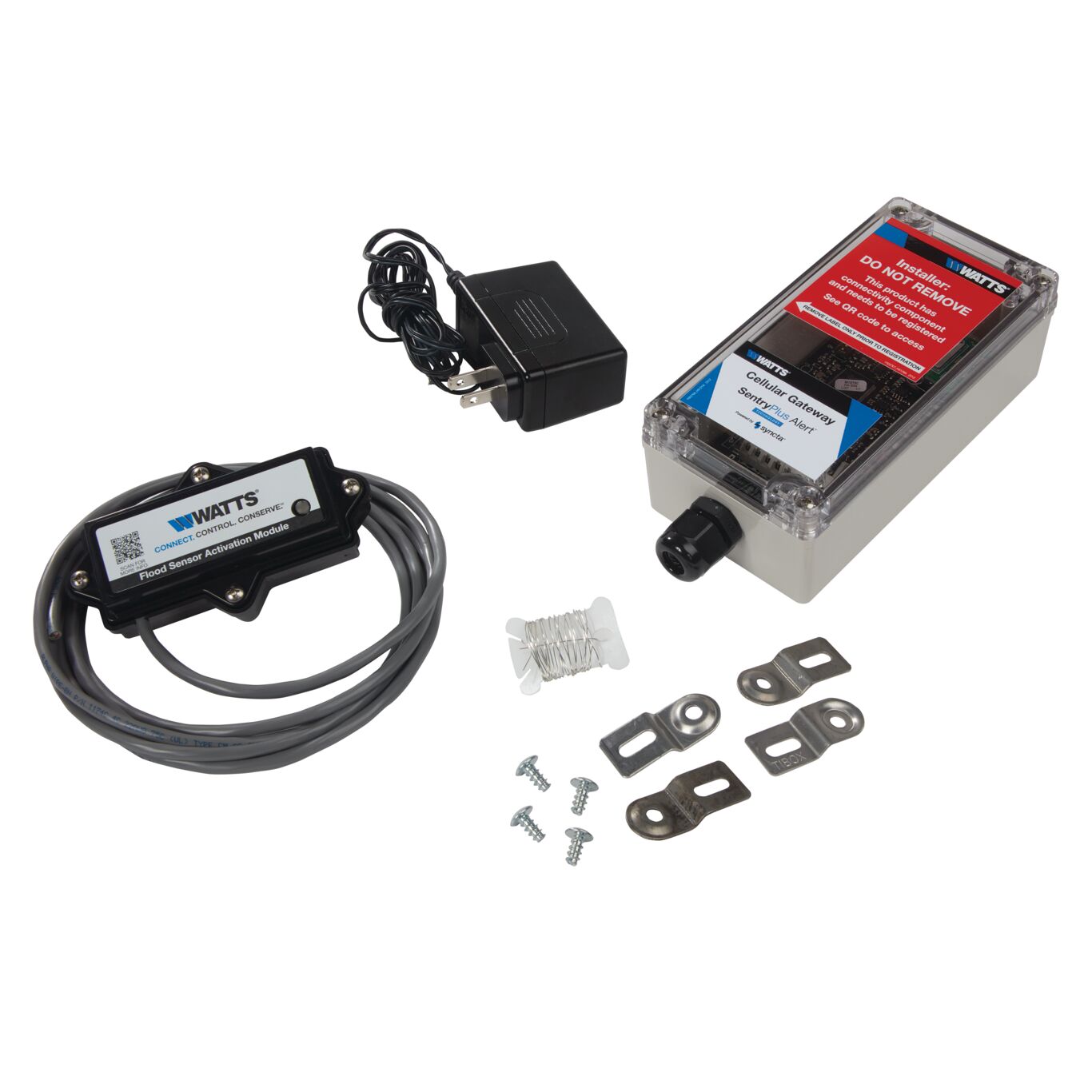

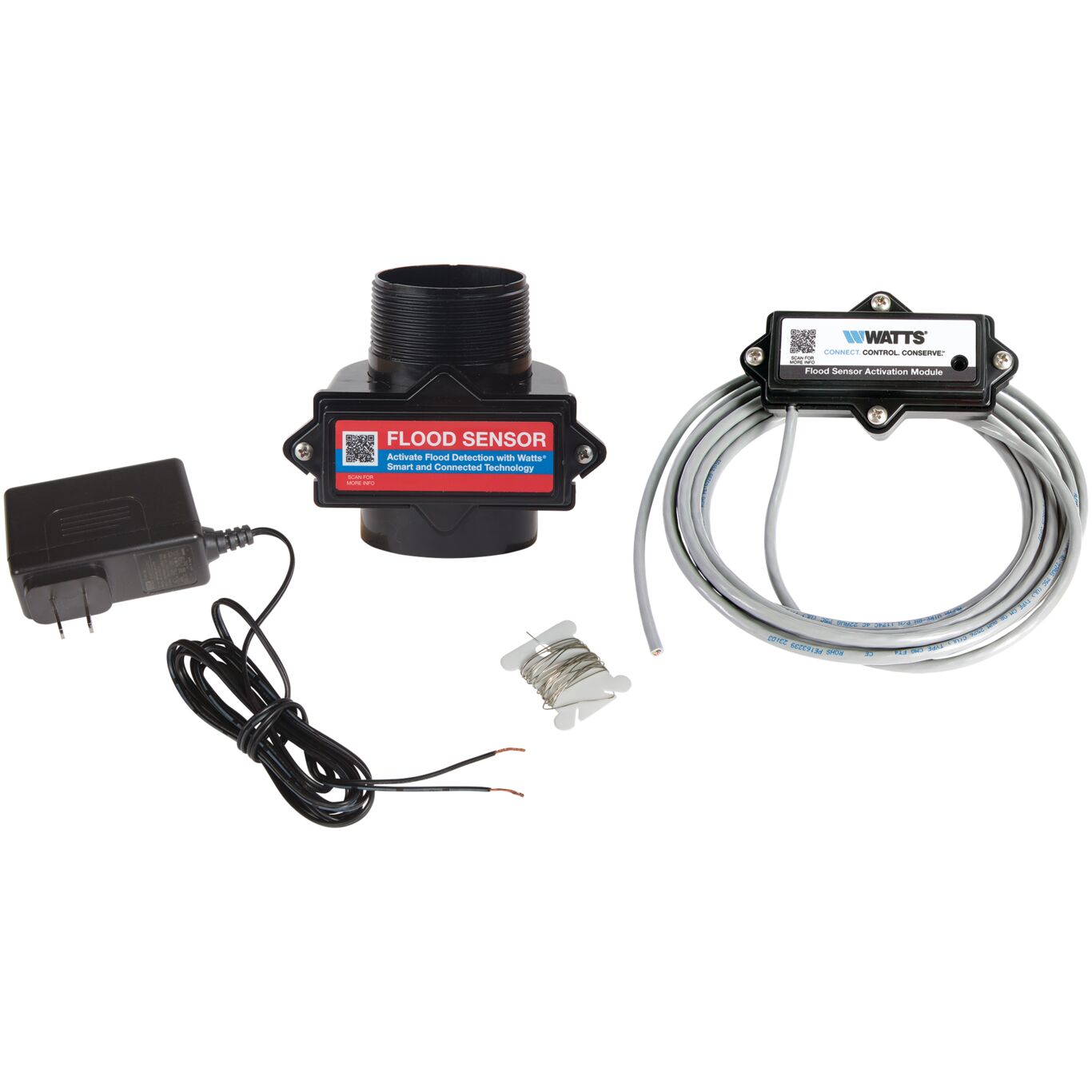

A flood detection upgrade option, the Air Gap Flood Sensor Connection Kit is compatible with any RPZ assembly system including a metal air gap and a 2-inch female NPT connection. Mounted at the base of the air gap, the sensor is triggered when the relief valve discharge exceeds 3 gpm. The kit consists of sensor and activation components and supports integration with BMS and cellular network communication.

To learn more visit: Flood Protection Backflow System

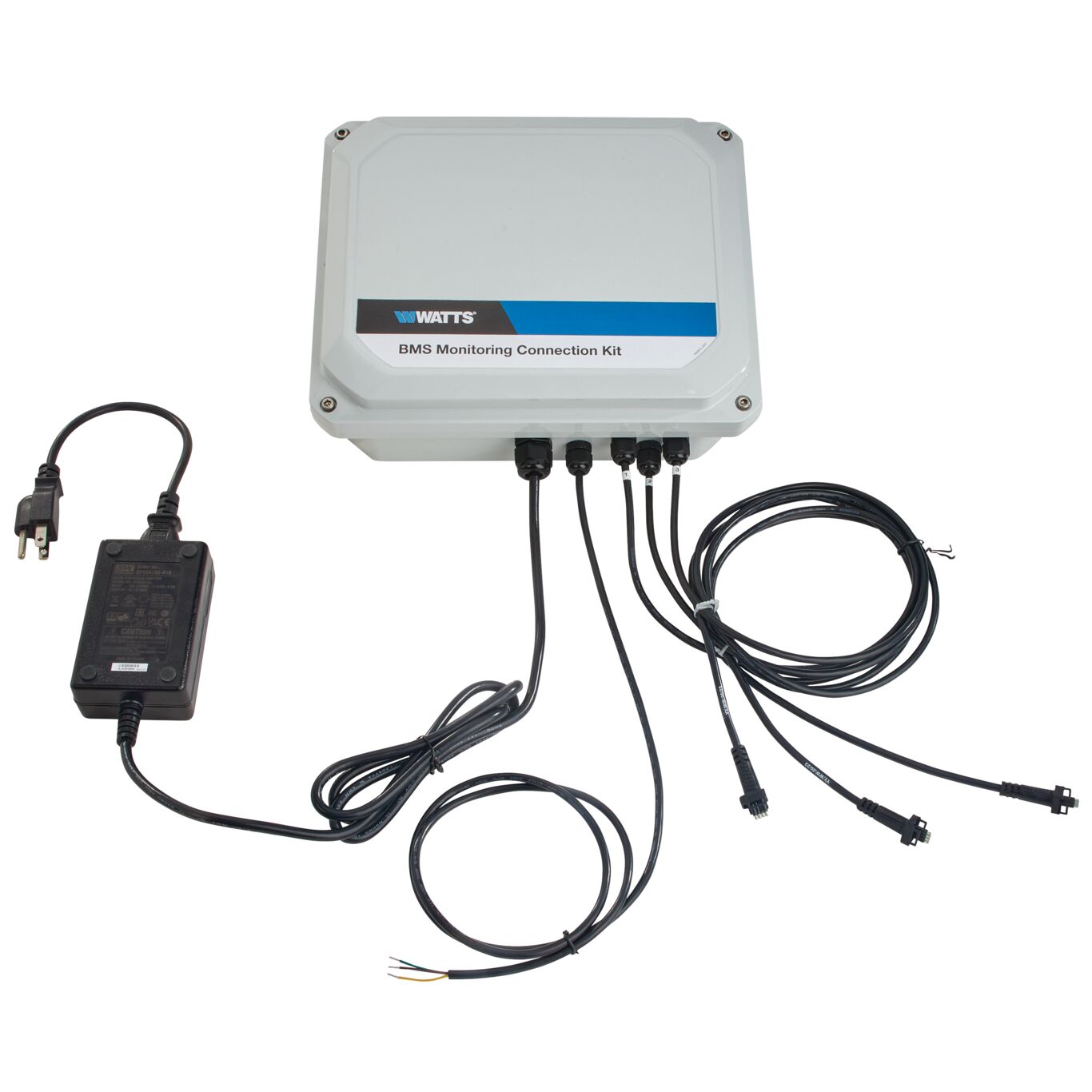

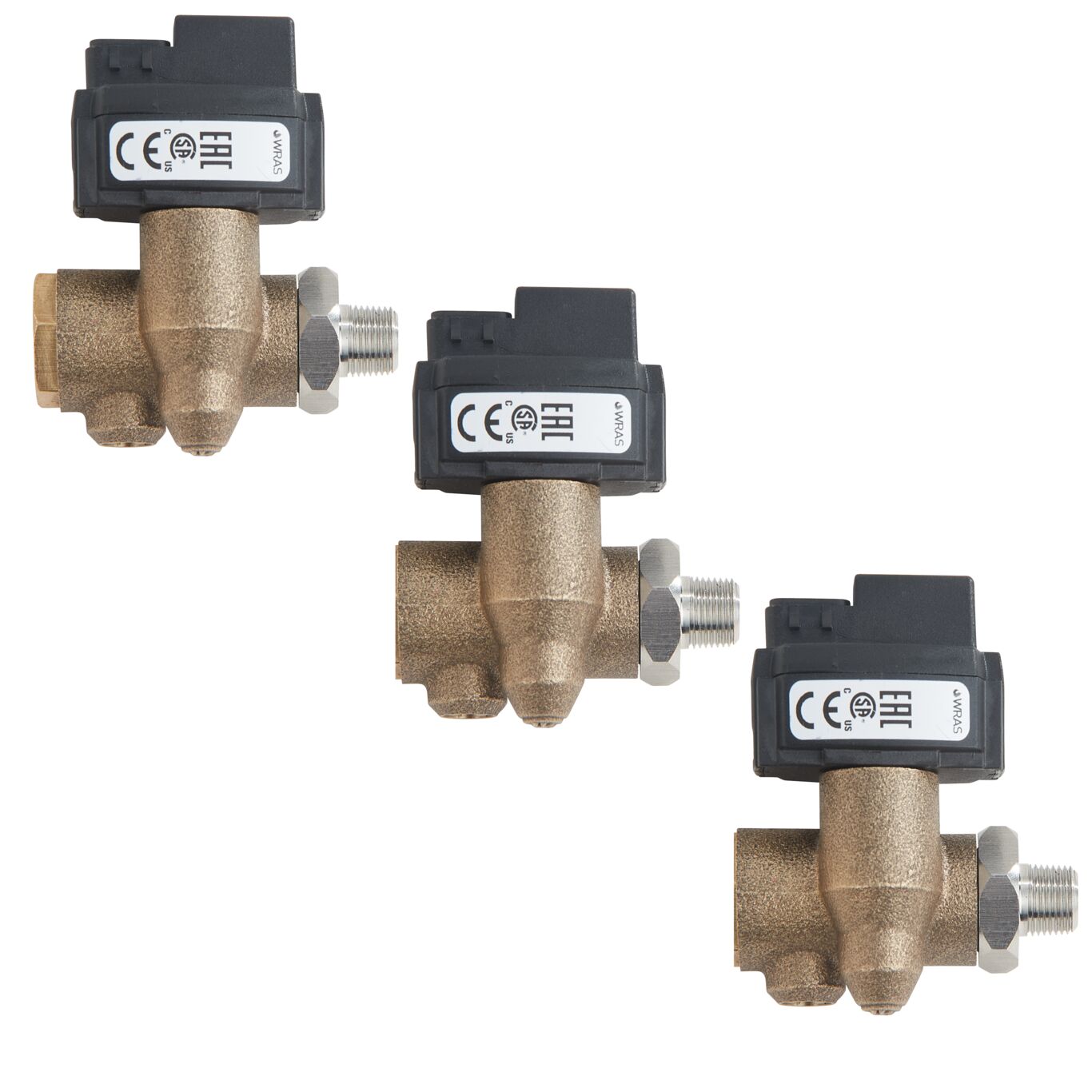

Pressure Monitoring — Assess the performance of select backflow preventer assemblies with integrated sensor technology on test cocks to measure pressure fluctuations at three points. Available on Model IOT of Series LF007 and LF709 with NRS gate valves, and suitable for non-fire protection applications. Requires an add-on monitoring connection kit to collect, convert, and transmit pressure data. Supports integration with BMS. The replacement kit includes three sensor modules.

To learn more visit: Series LF007-LF709 with Pressure Monitoring

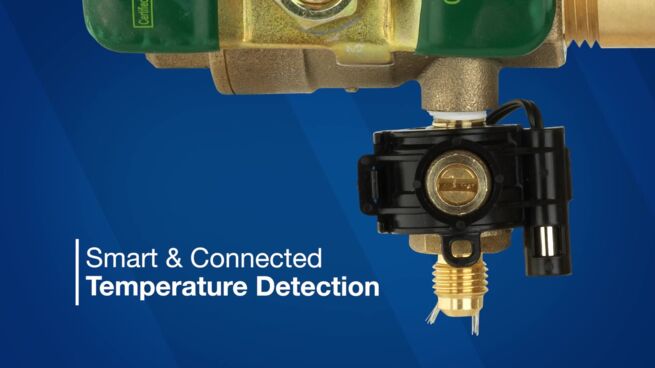

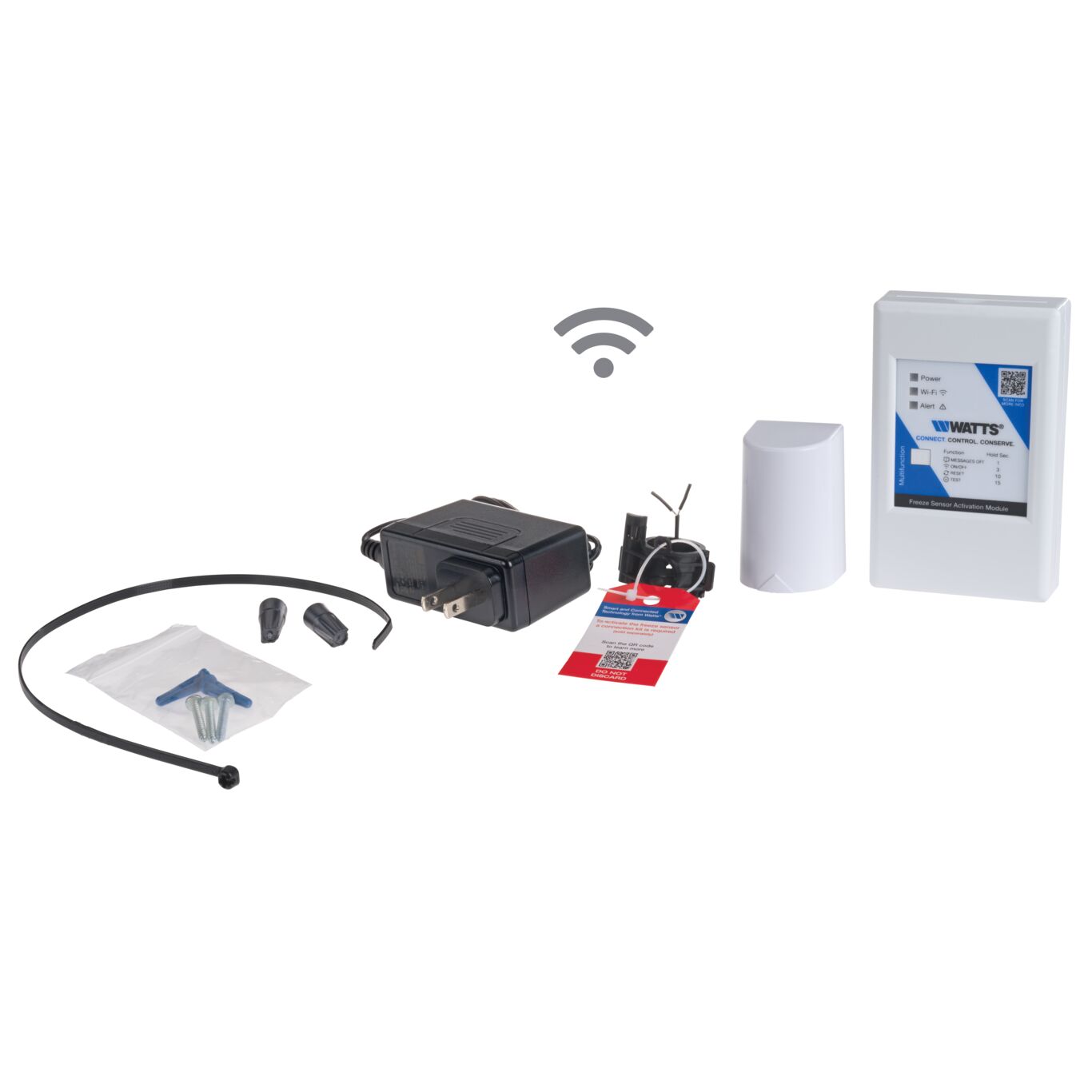

Freeze Detection — Safeguard small-diameter devices from freezing conditions with sensor-based temperature monitoring. The system can alert facility personnel when the temperature approaches and reaches the freezing point. The alert capability is activated through an add-on connection kit compatible with Wi-Fi networks, BMS, and irrigation management systems (IMS). Each two-sensor kit includes one for the valve assembly and the other for standalone operation at cold-sensitive, water-bearing equipment. Freeze sensor replacements are available.

To learn more visit: Freeze Detection

Flood Detection for Reduced Pressure Zone Assemblies

Watts Series 009, LF009, LF909 Small/Large, LF919, 957, 994

Ames Series C400, 4000SS

Any RPZ assembly system including a metal air gap with 2 IN female NPT connection

Flood Detection for Reduced Pressure Detector Assemblies

Watts Series 909RPDA, 957RPDA, LF957RPDA, 994RPDA

Ames Series C500, LFC500, 5000SS

Pressure Monitoring for Double Check Valve Assemblies

Watts Series LF007 Model IOT, 2½ IN and 3 IN

Watts Series LF709 Model IOT

Freeze Detection for Vacuum Breakers

Watts Series 800M4FR, LF800M4FR, 800M4QT, LF800M4QT

Freeze Detection for Double Check Valve Assemblies

Watts Series 007, LF007, SS007

Freeze Detection for Double Check Detector Assemblies

Watts Series 007M1DCDA

Freeze Detection for Ames Backflow Preventers

Ames Backflow Preventers - All Sizes
