2000SS

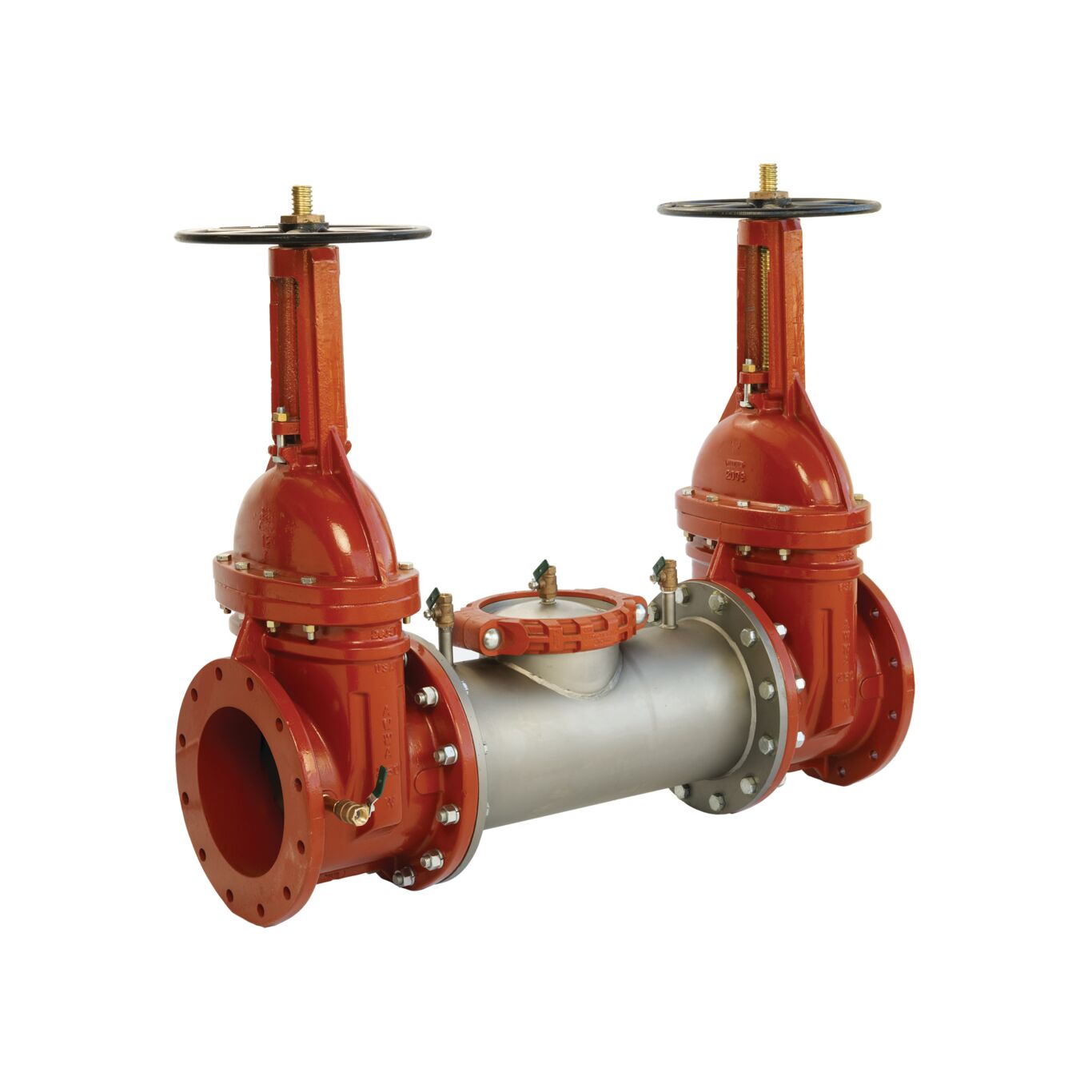

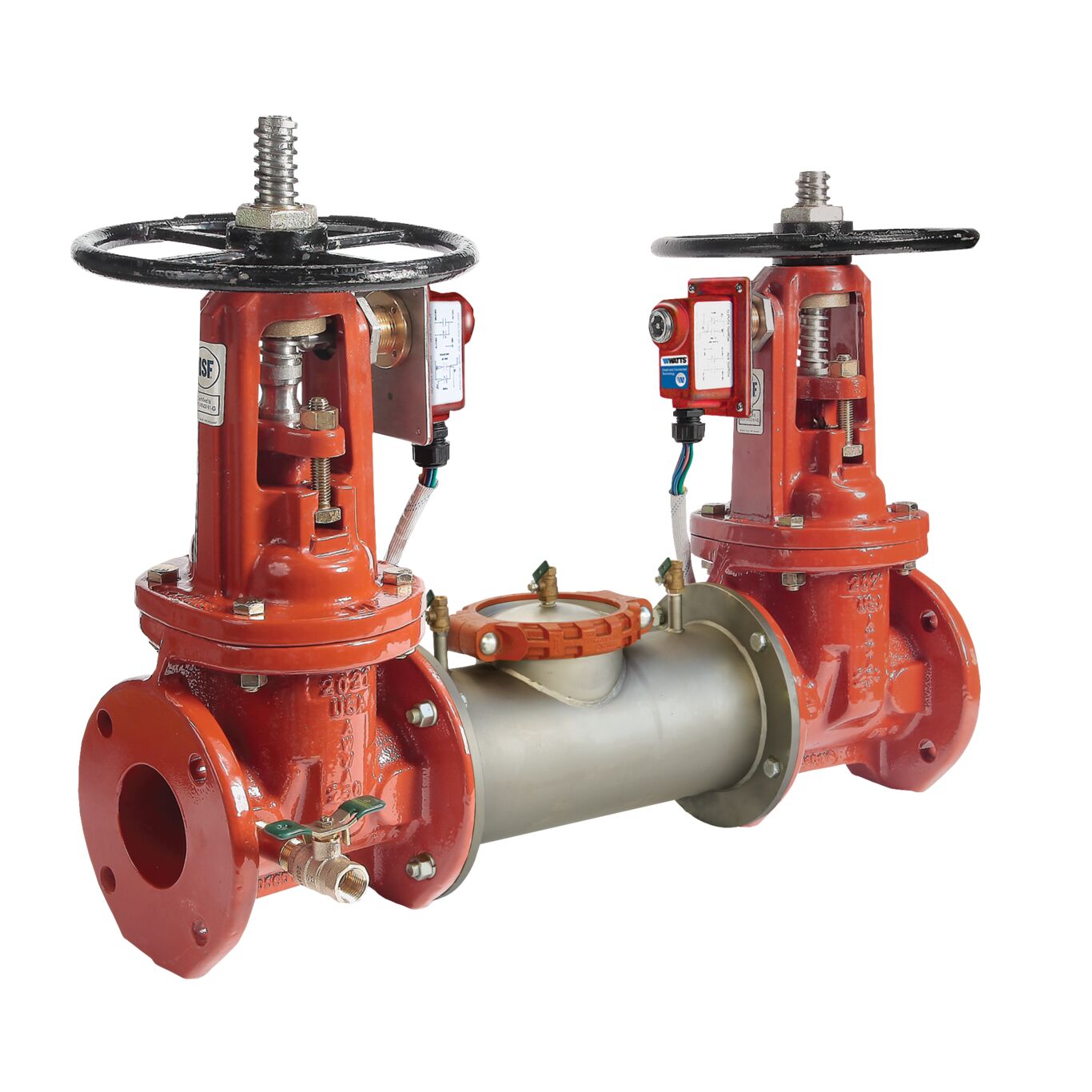

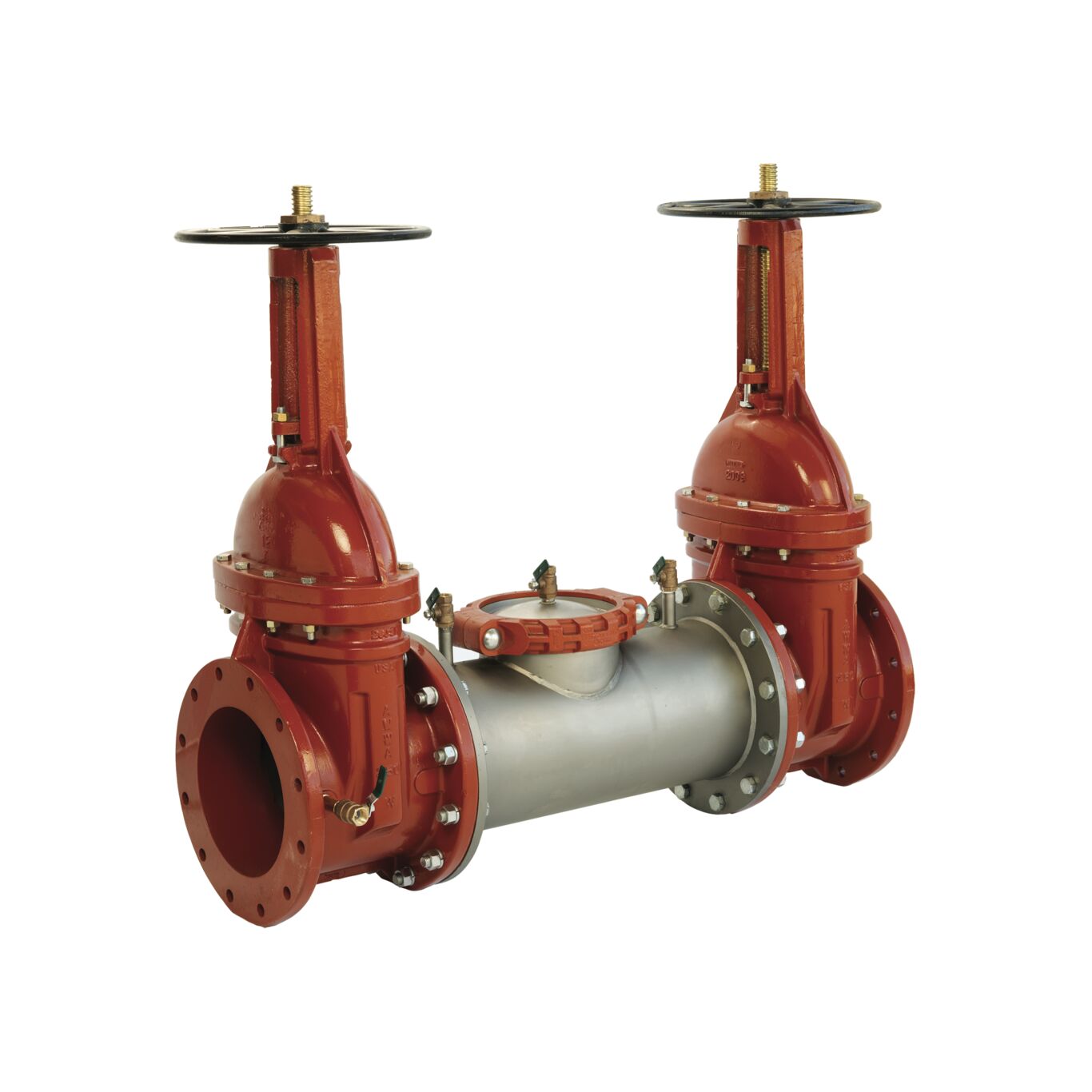

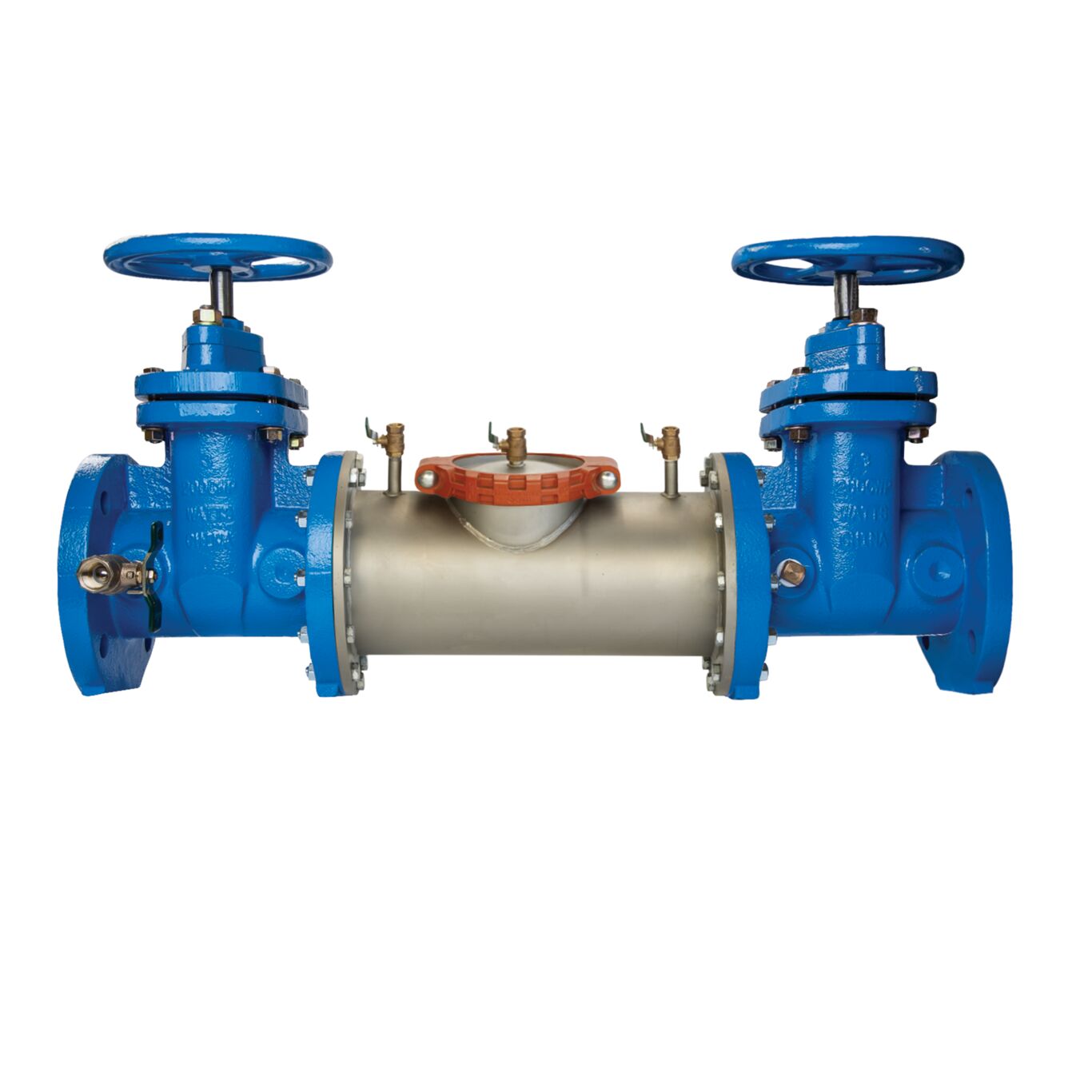

Stainless Steel Double Check Valve Assembly Backflow Preventers
Series 2000SS Double Check Valve Assembly Backflow Preventers are designed to prevent the backflow of polluted water from entering into the potable water supply. It consists of a compact construction and short lay length, ideal for retrofit installations.
This assembly features a lightweight stainless steel body, low head loss, and a durable, robust, UL Listed tamper switch that signals when the valve is closed or when the tamper switch is removed from the valve. Connection of the tamper switch wiring to a fire alarm control panel is required.
Series 2000SS is ideal in applications identified by local authorities as non-health hazard. Maximum working pressure is 175 psi (12.06 bar).
- Cam-check assembly provides low head loss
- Short lay length is ideally suited for retrofit installations
- Stainless steel body is half the weight of competitive designs reducing installation and shipping cost
- Stainless steel construction provides long term corrosion protection and maximum strength
- Single top access cover with two-bolt grooved style coupling for ease of maintenance
- No special tools required for servicing
- Compact construction allows for smaller vaults and enclosures
- May be installed in horizontal or vertical “flow up” position (ASSE Only)
- UL Listed tamper switch signals when the valve is closed or when the tamper switch is removed from the valve
Documentation
Sélectionner un modèle
Sélectionnez les résultats ci-contre pour identifier le CUP, le code de commande et la trousse de réparation pour un CUP 2000SS
Partager ce produit
Renseignements sur l'approbation
Pour plus d'informations relatives aux approbations, veuillez consulter la fiche technique des produits. Pour obtenir d’autres informations et documentations sur la certification des produits, veuillez consulter les sites Web de nos partenaires de certification
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
