15M2
Water Hammer Arrestors

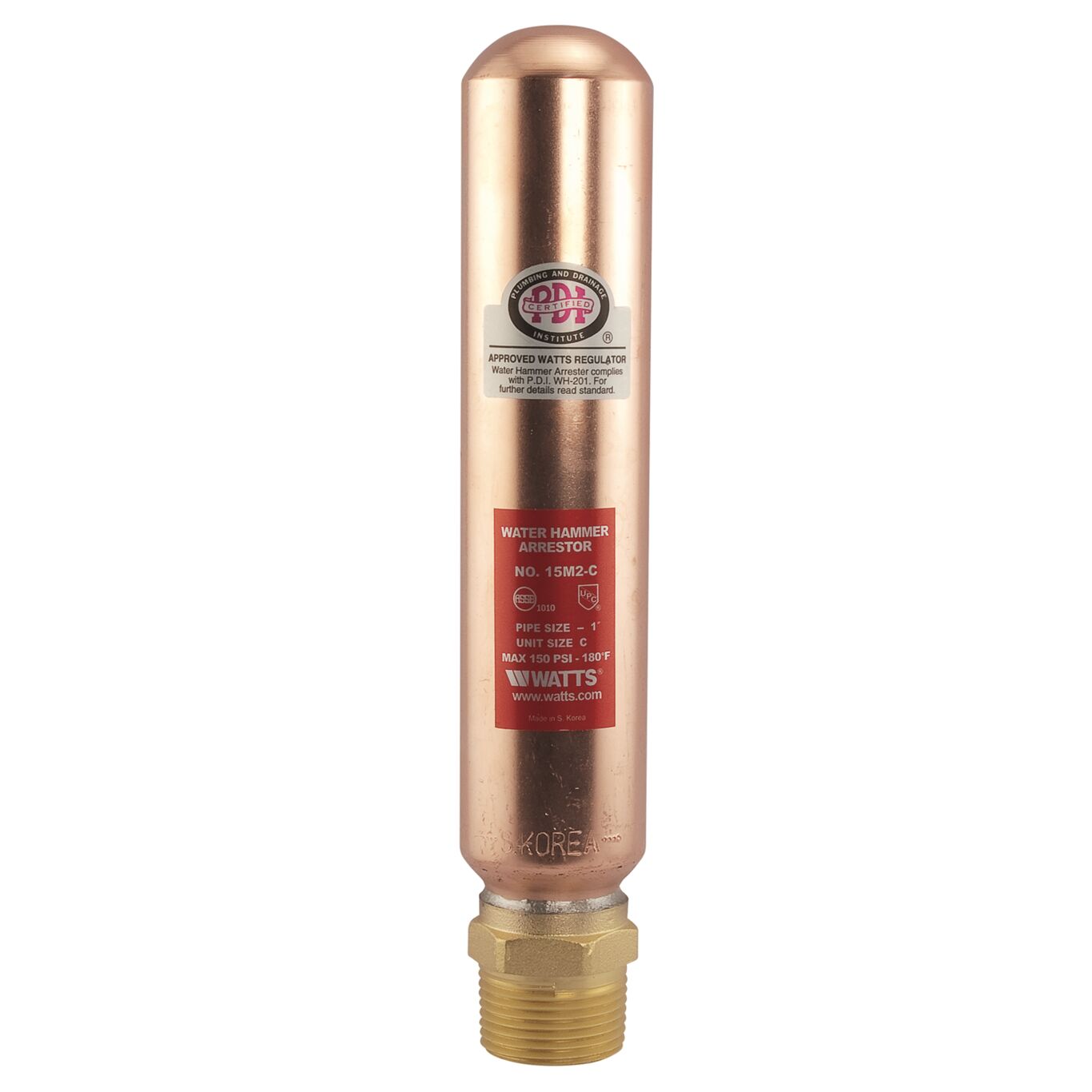

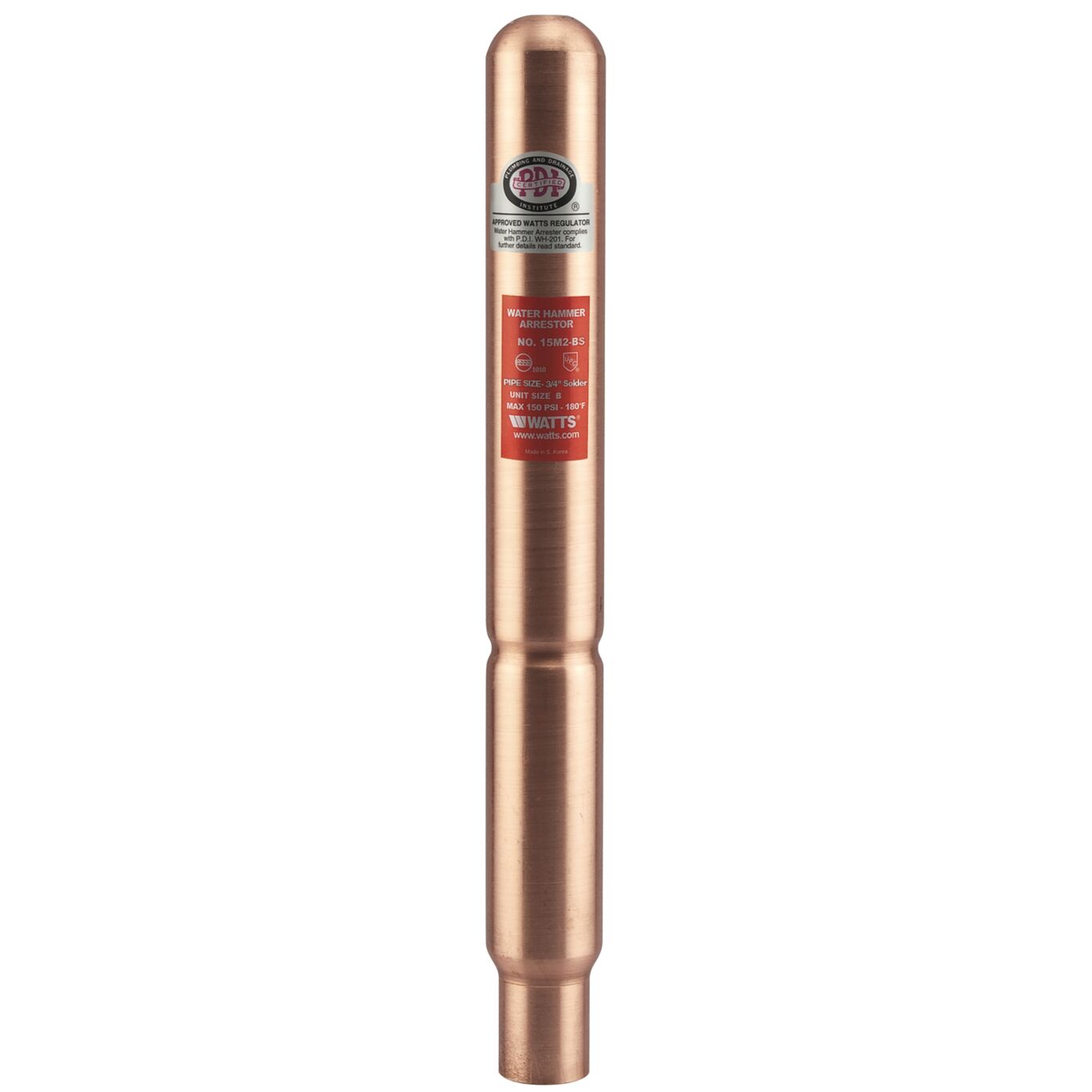

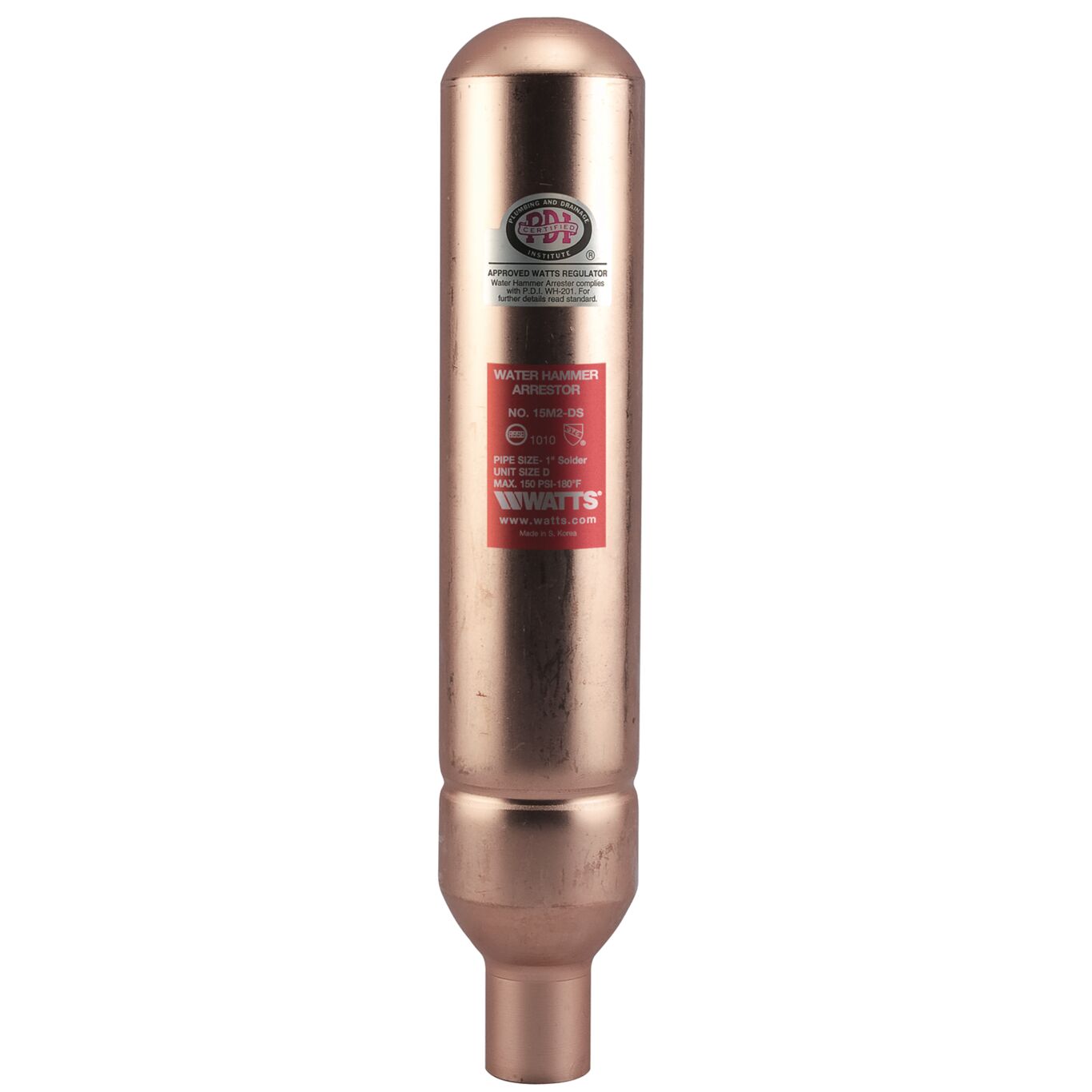

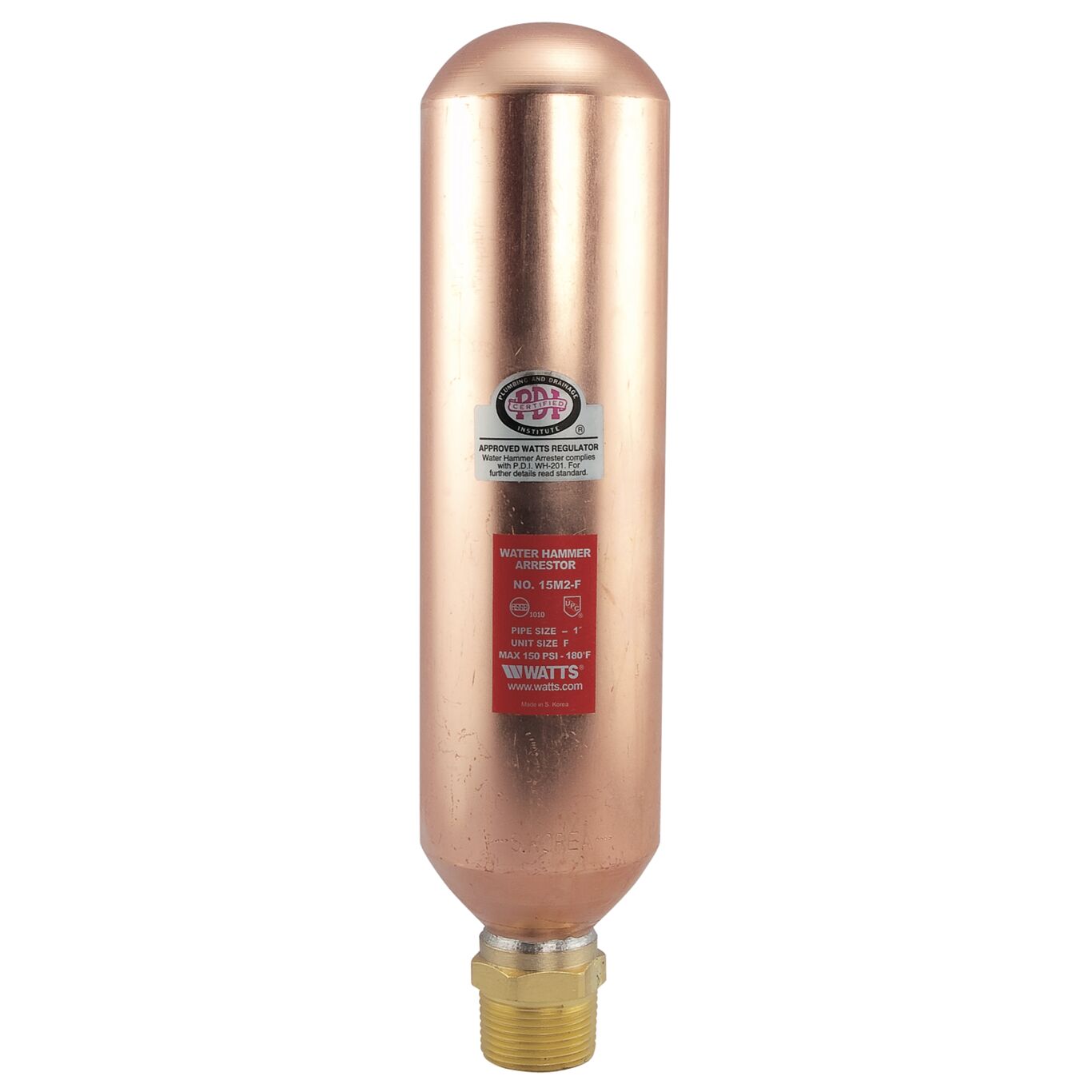

Series 15M2 Water Hammer Arrestors are used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. They have a copper body, EPDM seals and O-rings, polypropylene piston, and NPT hex brass adapter end connections for easy installation. Series 15M2 is factory air charged and is not rechargeable. The sealed chamber prevents the loss of air to the water and ensures long and trouble-free life. It can be installed in new or existing plumbing systems, in concealed locations, with a standard pipe tee at any angle. Series 15M2 is ideal for commercial dishwashers, washing machines, and quick-closing faucets. ASSE and ANSI approved, PDI certified, and IAPMO listed. Maximum Working Pressure: 150psi (10.6 bar).
- Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field
- Solid brass NPT hex adapter for easy installation
- ASSE, ANSI and PDI approved and UPC listed
- May be installed in concealed locations without access panels
Documentation
Sélectionner un modèle
Sélectionnez les résultats ci-contre pour identifier le CUP, le code de commande et la trousse de réparation pour un CUP 15M2
Partager ce produit
Renseignements sur l'approbation
Pour plus d'informations relatives aux approbations, veuillez consulter la fiche technique des produits. Pour obtenir d’autres informations et documentations sur la certification des produits, veuillez consulter les sites Web de nos partenaires de certification
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
